MIL-STD-1798C
5.2.12.3 Design Criteria for in-direct failure mode effects.
The subsystem design and mitigations implemented shall reduce the predicted rate of Class A mishaps resulting for indirect failure mode effects to less than 1x10-7 per flight hour. Indirect failure mode effects are those in which the failed part is not directly involved in delivering a lost safety-critical function, but a collateral effect of failure interferes with a safety-critical function.
An example is: An Auxiliary Power Unit experiences an uncontained failure sending hot turbine material into a fuel tank, resulting in a fire which causes loss of aircraft. The HA is a critical tool available to the MECSIP engineer to identify the hazards associated with each subsystem and define mitigations for those hazards. A list of indirect failure modes and the appropriate design criteria to control those hazards are listed in 5.2.12.3.1 through 5.2.12.3.5 and shown on
figure 3.

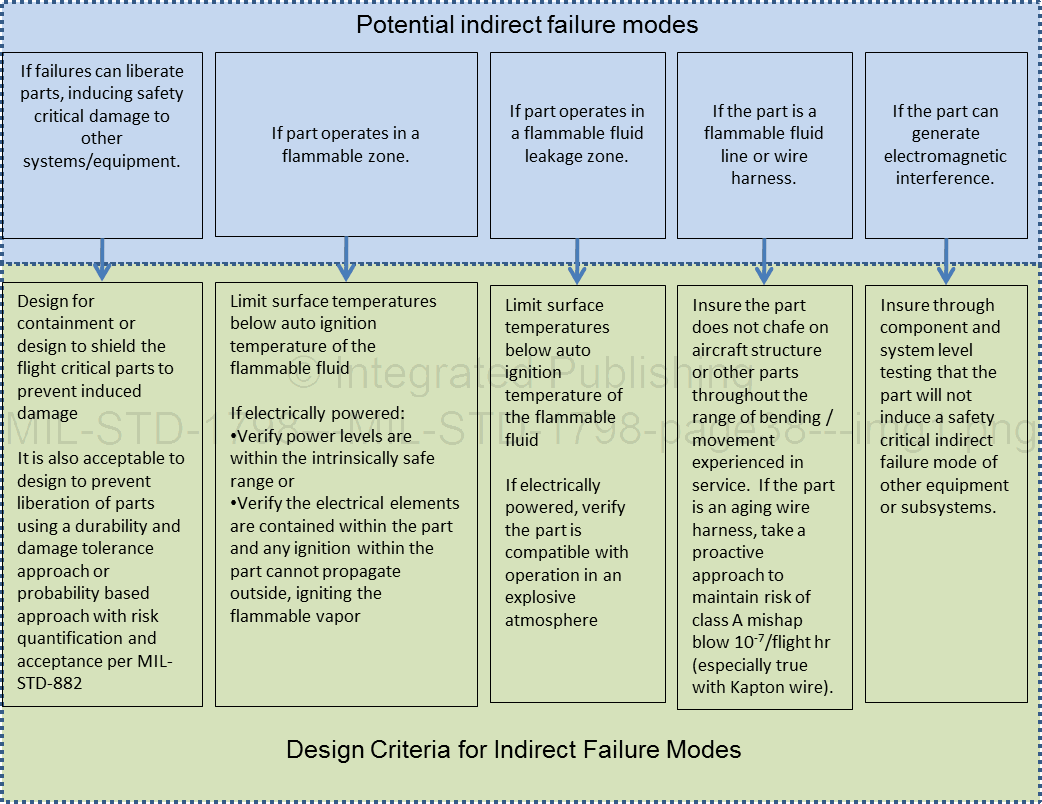

FIGURE 3. Indirect failure modes.
29
