MIL-STD-130N

w/Change 1

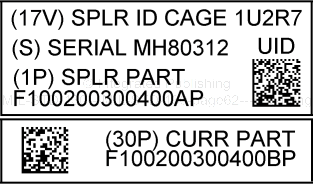

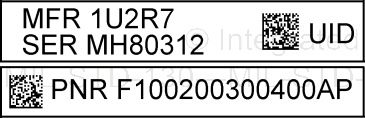

Preferred Layout

Data Matrix and human readable

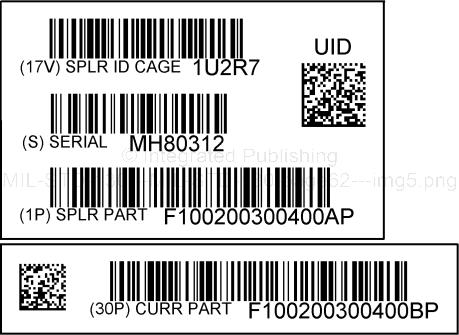

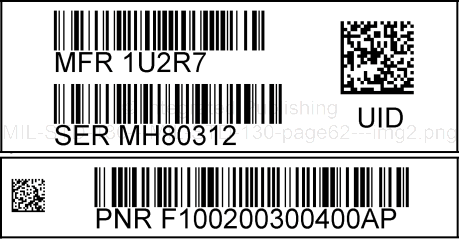

Optional Layout

Data Matrix, linear bar codes,

and human-readable

Alternate

Layout (Severely limited space)

UII Construct

# 1

(Note 2)

See

Note 2

UII Construct

# 2

(Note 2)

See

Note 2

Non-UID

Serialized item

Non-serialized item

Or: Linear bar codes only

Non-serialized item

(Note 3)

NOTES:

1. The examples shown are illustrative only. The different layouts do not indicate a preferred protocol for use.

2. The A4A SPEC2000 protocol recommends marking the current PIN as a separate bar code label to facilitate replacement when a new altered item PIN is assigned. This marking procedure may be used for

all marks. For UII Construct #2 marks, the current PIN information may be added as a second label when item alteration requires new current PIN identification. In cases of space limitation, split labels/symbols

may be reduced to one label/symbol. If the mark is reduced to a single Data Matrix symbol, it should

include the item's source (manufacturer or supplier) and current PIN.

3. Most GS1 System users require linear bar codes in the item mark.

FIGURE 10. Minimum MRI marking with HRI scenarios (see Note 1).
